The Motorsport Secret: 7 Reasons Why 'HUB Stands For Alignment' Is Revolutionizing Car Setup In 2025
The phrase 'HUB Stands for Alignment' is not an acronym in the traditional sense, but rather a direct, technical reference to a specialized tool that has become indispensable for high-performance and race car suspension tuning in 2025. This equipment—known simply as Hub Stands—is fundamentally changing how enthusiasts, professional race teams, and advanced mechanics achieve the most accurate and repeatable vehicle alignment. The core concept is to remove the wheel and tire variables entirely, bolting a precision stand directly to the wheel hub to measure suspension geometry with unparalleled accuracy, a critical step for optimizing a vehicle's handling on the track or street.
The transition from traditional alignment racks and string systems to Hub Stands represents a significant leap in precision engineering. In the world of motorsport, where a fraction of a degree in camber or toe can mean the difference between a podium finish and a DNF, this level of precision is not a luxury—it's a necessity. By eliminating the inaccuracies caused by tire compliance and wheel runout, Hub Stands provide a stable, repeatable platform for comprehensive suspension adjustments, making them the ultimate tool for achieving perfect alignment and corner weighting.
The Technical Blueprint: What Hub Stands Are and How They Work

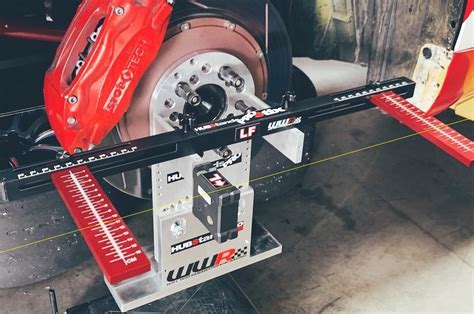

Hub Stands are essentially four individual, height-adjustable metal stands that are bolted directly to the vehicle's wheel hubs using multi-pattern hub attaching plates, replacing the wheels and tires. This simple substitution is the key to their effectiveness. When the car is lowered onto these stands, it rests at its natural, static ride height, but without the influence of the tires.
Here is a breakdown of the critical components and their function:
- Hub Plate: A precision-machined plate that bolts directly to the wheel studs, ensuring the measurement is taken from the true center of the hub, eliminating the variable of wheel runout.
- Roller Bearings/Ball Casters: The base of each stand features a low-friction surface, often using roller balls or turntables. This crucial feature allows the suspension to pivot freely and settle into its natural position as if it were rolling on the ground. This simulates the action of slip plates or turn plates found on a professional alignment rack, but with greater freedom of movement.
- Vertical Measurement Post: A post or rod extending vertically from the hub plate allows for the attachment of measuring tools like digital camber/caster gauges and string alignment systems.
- Height Adjustment: Most high-quality Hub Stands, such as those made by Paco Motorsports or BBX Racing, feature fine-threaded height adjusters. This allows the user to precisely level the vehicle and simulate different track conditions or fuel loads, a process essential for accurate corner weighting when the stands are placed on pad levelers and scales.
The primary benefit is unfettered access. With the wheels removed, a mechanic or DIY enthusiast gains complete, unobstructed access to all suspension components—from control arms and tie rods to coilover adjustments. This makes the tedious process of adjusting, rolling the car, and re-measuring a thing of the past.
7 Undeniable Advantages of Hub Stands Over Traditional Alignment Methods
While traditional string alignment and commercial alignment racks are functional, Hub Stands offer a level of precision and efficiency that is unmatched, particularly for vehicles with complex suspension geometry and high-performance requirements.
1. Elimination of Tire and Wheel Runout
The single biggest source of error in traditional alignment is the wheel and tire assembly itself. Tires are flexible, and wheels—even high-end ones—have slight imperfections known as runout. Hub Stands bypass this issue entirely by measuring directly from the wheel hub, which is the fixed point of rotation. This results in measurements that are far more precise and repeatable.
2. True Static Ride Height Simulation
For an alignment to be accurate, the suspension must be settled at the exact ride height it will operate at. Traditional methods often require jacking the car up and down, which can temporarily bind the suspension. Hub Stands allow the car to sit naturally on the roller bearings, ensuring the suspension is fully settled and relaxed, providing a true representation of the on-track geometry.
3. Unobstructed Access to Adjustment Points
When performing an alignment, adjustments to camber bolts, toe links, and caster shims are often restricted by the presence of the wheel and fender. Hub Stands provide wide-open access to every fastener, allowing for quick, single-step adjustments without the constant need to raise, lower, and re-measure the vehicle.
4. Precision Corner Weighting Integration
Hub Stands are designed to sit perfectly on scale pads (often called pad levelers or leveling plates). This allows the mechanic to simultaneously adjust the suspension for cross weights (corner weighting) and set the alignment parameters (camber, caster, and toe). This integrated approach is essential for achieving optimal balance and handling, especially in motorsport disciplines.
5. Advanced Suspension Geometry Analysis
Beyond the basic three parameters (camber, caster, toe), Hub Stands are the only practical tool for accurately measuring and adjusting advanced suspension characteristics like bump steer and roll center. These adjustments require the suspension to be cycled through its travel, which is made possible by the clearance and stability the stands provide.
6. Portability and DIY Capability
A professional alignment rack costs tens of thousands of dollars and requires a dedicated space. A set of high-quality Hub Stands, from manufacturers like CSM Performance, is portable, relatively affordable, and allows DIY alignment to be performed in a home garage. This empowers the amateur racer and track day enthusiast to fine-tune their setup between events.
7. Repeatability and Consistency
The rigid, fixed nature of the Hub Stand system ensures that once a measurement is taken, it can be reliably replicated. This precision measurement capability is crucial for documenting and reproducing successful track setups across different events or seasons, providing a significant competitive advantage.
Key Entities and LSI Keywords for Topical Authority
To fully grasp the world of advanced vehicle setup, understanding the related terminology is vital. The use of Hub Stands brings the following concepts into sharp focus:
- Camber: The inward or outward tilt of the wheel when viewed from the front of the car.
- Caster: The angle of the steering pivot when viewed from the side of the car, affecting steering feel and straight-line stability.
- Toe: The measure of how parallel the wheels are to each other, affecting tire wear and turn-in response.
- Bump Steer: The change in toe angle as the suspension moves vertically. Hub Stands are necessary for accurate bump steer kits and adjustments.
- Roll Center: The imaginary point around which the car rolls. Adjusting it is part of advanced suspension tuning.
- String Alignment: A traditional, low-cost method that uses strings and straight edges to measure toe, often used in conjunction with Hub Stands for a complete system.
- High-Performance Vehicles: Cars that benefit most from this precision, including track-focused sports cars, time attack machines, and drift cars.
- Chassis Setup: The overarching process of tuning a vehicle's suspension and frame for optimal performance.
In summary, when you hear the term 'HUB Stands for Alignment,' remember it refers to the cutting-edge method of achieving precision alignment in motorsport. It is a tool that has moved beyond being a niche product to becoming a standard for anyone serious about maximizing their vehicle's handling and extracting every ounce of performance from their suspension geometry.
