5 Hidden Secrets: How A Snorkel Works—The 2025 Guide To Underwater Breathing Physics
Snorkeling is a gateway to the underwater world, offering a serene view of vibrant coral reefs and marine life without the complexity of scuba gear. As of December 26, 2025, the fundamental principle remains simple: a snorkel is a tube that allows you to breathe atmospheric air while your face is submerged. However, modern snorkel technology, from ultra-dry valves to full-face masks, has transformed this simple concept into a sophisticated piece of life-support equipment, relying heavily on fundamental physics and smart engineering.
The magic isn't just in the tube itself, but in how your body interacts with the water pressure and the air volume inside the device. Understanding the specific mechanisms of different snorkel types—classic, semi-dry, and the latest dry-top innovations—is crucial not only for a better experience but also for safety. This deep dive reveals the five core secrets of how this essential piece of gear truly works, from the classic J-tube to the cutting-edge gear of today.
The Core Mechanism: A Simple Extension of Your Airway
At its heart, every snorkel functions as a direct extension of your respiratory tract, connecting your mouth to the air above the water's surface. This simple design, often referred to as a "J-tube" or classic snorkel, consists of two main components: a curved tube and a comfortable mouthpiece.
When you place the mouthpiece in your mouth and submerge your face, the top of the tube remains exposed to the atmosphere. This creates a continuous, albeit restricted, pathway for fresh air to reach your lungs. The curvature of the tube is designed to minimize water ingress from splashes while maintaining an ergonomic fit alongside your head.
The Physics of Breathing: Why Snorkels Can't Be Too Long
One of the most critical secrets to snorkeling involves a physiological limit often overlooked: the length of the tube. You may wonder why snorkels are never longer than about 16 to 18 inches. The answer lies in two key physical concepts: dead air space and water pressure.
- Dead Air Space (Rebreathing): Every time you exhale, some of the carbon dioxide (CO2)-rich air stays trapped inside the snorkel tube. When you inhale again, you breathe this "dead air" back into your lungs. If the tube is too long or too wide, the volume of dead air increases to a point where you are constantly rebreathing too much CO2, leading to a dangerous condition called hypercapnia.
- Water Pressure (Lung Collapse): The deeper you go underwater, the greater the pressure exerted by the water column on your chest. Even if the snorkel tube was long enough to reach the surface from a greater depth, the external water pressure would make it physically impossible for your diaphragm and chest muscles to expand the lungs and draw a breath of air. This is why snorkeling is strictly a surface activity.
To counteract the dead air issue, experienced snorkelers use a technique called diaphragmatic breathing—taking long, deep, and rhythmic breaths. This maximizes the exchange of fresh air and helps to flush the stale, CO2-rich air out of the tube more efficiently.

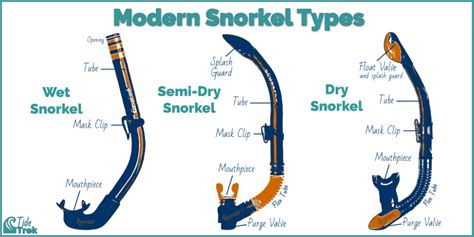

The 3-Tier Evolution: From Simple J-Tube to Ultra-Dry Technology
The modern snorkel market is defined by three distinct technological tiers, each designed to solve the problem of water entering the tube, a major frustration for beginners. The latest models for 2025/2026 feature advanced materials and streamlined ergonomic designs.
1. The Semi-Dry Snorkel: The Splash Guard Secret
The semi-dry snorkel is the first step in water-blocking technology. It features a simple, often curved, plastic cap or "splash guard" at the top of the tube.
How it Works: The splash guard does not create a seal. Instead, its shape is engineered to deflect surface water, such as wave crests or splashes from other swimmers, away from the opening. It significantly reduces the amount of water that enters during light surface activity but will flood completely if the snorkel is submerged or swamped by a large wave.
2. The Dry Snorkel: The Float Valve Mechanism
The dry-top snorkel, often featuring 'Ultra Dry Snorkel Technology' in 2025 models, is the most popular and effective design for keeping water out. It offers a near-perfect seal when submerged, making it ideal for beginners or choppy waters.
How it Works: The key is a mechanical float valve system located at the very top of the tube. This mechanism contains a small, lightweight float ball or paddle.
- On the Surface: The float rests at the bottom of its chamber, leaving the air passage wide open for normal breathing.
- When Submerged: As the snorkel goes underwater, the rising water pushes the float upward. The float then presses against a seal (often a rubber or silicone gasket), effectively blocking the air intake hole and preventing water from entering the tube.
This float valve mechanism provides a 95% to 98% water blockage rate, allowing the snorkeler to briefly dive down without having to clear a flooded tube upon resurfacing.
3. The Purge Valve: The Effortless Clearing Secret
Both semi-dry and dry snorkels often feature a one-way purge valve located at the bottom of the tube, near the mouthpiece. This small, round mechanism is one of the greatest comfort innovations in snorkeling gear.
How it Works: If a small amount of water does get into the tube, the purge valve allows the snorkeler to expel the water with a sharp, short puff of breath, known as the 'blast clear' technique. The water is forced out through the one-way valve at the bottom, which is the lowest point in the tube, instead of having to force the water all the way up and out of the top of the snorkel. This makes clearing the snorkel significantly easier and less strenuous.
The Full-Face Mask Controversy: Separating Airflow for Safety
The full-face snorkel mask has revolutionized the experience by allowing users to breathe naturally through both the nose and mouth, eliminating the need for a biting mouthpiece. However, its sophisticated design introduces a new set of critical safety considerations that are still being addressed in 2025.
How it Works: The design separates the breathing chamber into two distinct zones using a system of internal baffles and valves:
- Inhalation Channel: Fresh air is drawn in through a separate, isolated channel, typically running down the sides of the mask.
- Exhalation Channel: Exhaled, CO2-rich air is directed out through a different channel, often running up the center, preventing it from mixing with the fresh air and reducing the fogging of the lens.
The design is brilliant in theory, but the primary safety concern remains the potential for CO2 buildup (hypercapnia), particularly during deep dives, rapid breathing, or overexertion. If the separation mechanism is flawed or the user is breathing too quickly, the exhaled CO2 can accumulate in the large volume of the mask, leading to dizziness, headaches, and in rare cases, loss of consciousness.
For this reason, experts recommend full-face masks only for leisurely surface snorkeling and caution against using them for freediving or strenuous swimming. The continuous innovation in 2025 is focused on improving the airflow dynamics to ensure safer and more efficient CO2 expulsion.
The simple snorkel is anything but simple. It is a masterpiece of applied physics and human engineering, balancing buoyancy, dead air volume, and water pressure to give us a window into the ocean. Whether you choose a classic J-tube or a high-tech dry-top, understanding these core mechanisms ensures a safer, more enjoyable, and truly effortless underwater experience. Always remember to practice proper breathing techniques—long, slow, and deep—to get the most out of your gear and the stunning marine world below.
